Flat top Building Crane 5610 Max. load capacity:6t PT5610 manufacturer from China Shandong Mingwei Hoisting Equipment Co., Ltd

Flat top Building Crane 5610 Max. load capacity:6t

Price:	37000.0~90000.0 USD
Payment Terms:	T/T,L/C
Place of Origin:	Shandong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: PT5610

Production Capacity: 100/month

Delivery Date: 10 days

Brand: Mingwei

Max. Load: 6t

Tip load: 1.0t

Max. height: 150m

Means of Transport: Ocean

Packing: Via container

Brand Name: MINGWEI

Model: PT5610

Max. jib length: 56m

Free standing height: 40m

Size of mast section: 1.6×1.6×2.5m

Shandong Mingwei Hoisting Equipment Co.Ltd. started manufacturing tower cranes from the very year our firm founded in 1994.

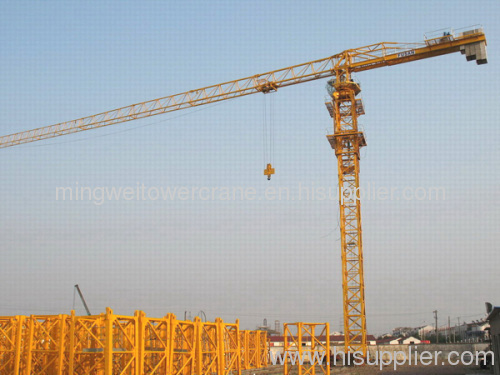

TOPLESS TOWER CRANE PT5610

PT5610 self-elevating tower crane consists of metal structure, component driving, hydraulic jack-up, electric control and safety protection device. Here is brief introduction of each part and
their characteristics:

For even higher performance and greater operational options: with its modular jib and without tie bars, the topless crane saves time and money.

Table for technical performances

Rated lifting torque				kN.m	630
Max. lifting capacity				t	6
Working range				m	356
Lifting Height	Independent				40.2
	Adhered				151.2
Lifting speed	Double magnification			m/min	80/40
	Quadruple magnification				38/19
Slewing speed				r/min	0.637
Trolleying speed				m/min	44/22
Climbing speed					0.4
Min. stable descending speed					<7< div="">
Outer size of whole crane	Foundation frame			m	8×8
	Overall height		Independent	50.892
			Adhered	160.892
	Tip of jib to the slewing center			56.17
	Tip of balanced jib to slewing center			12.39
Total weight	Structure weight	Independent		t	40.49
		Adhered			80.87
	counterweigh			t	18.34
Total motor capacity				kW	41.52
Allowed operating temperature				℃	-20+40
Power supply parameters				50Hz	380V±10%
